Shipping Container Locks & Seals

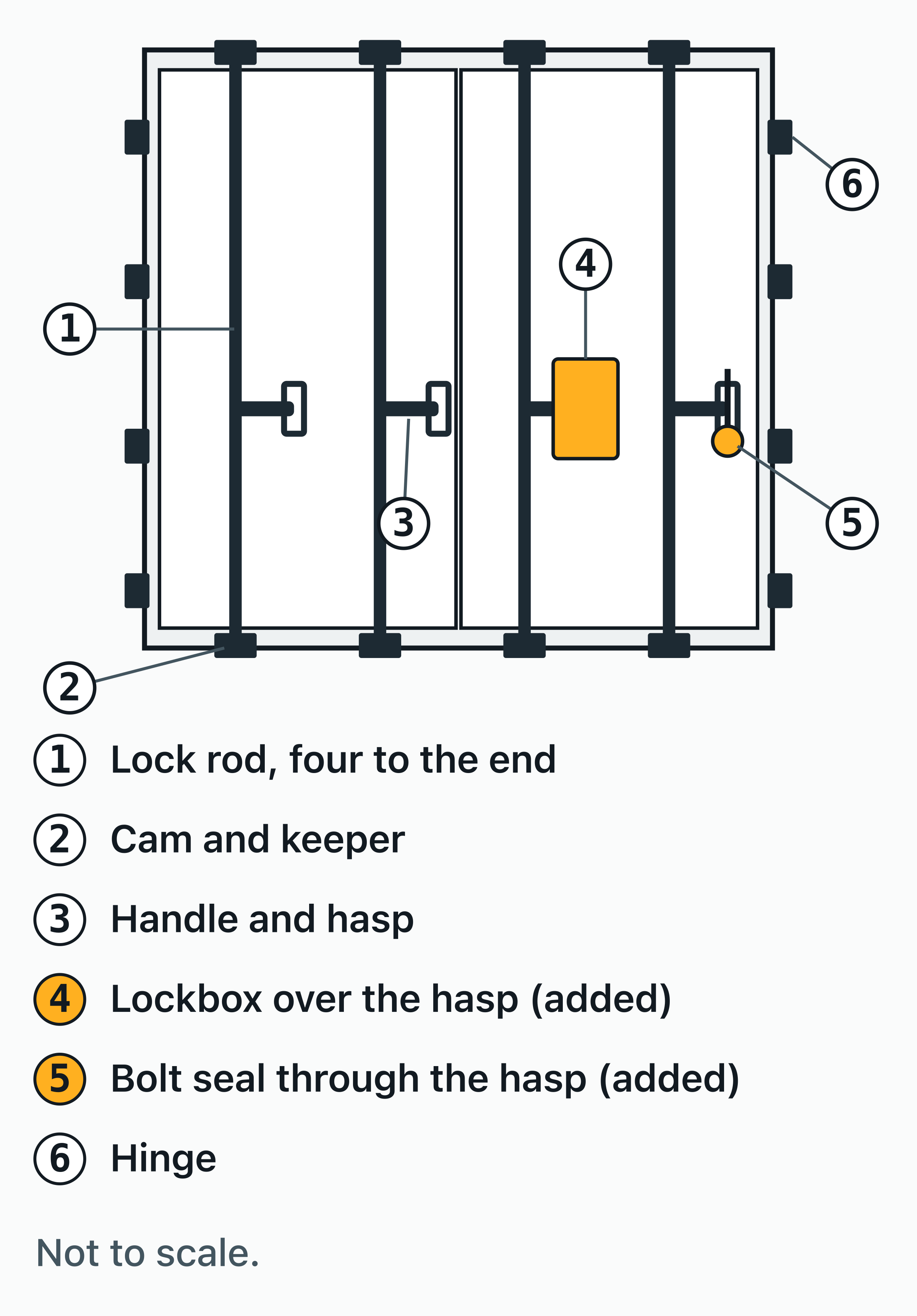

A lockbox is a steel shroud — typically ~350 × 180 × 100 mm, folded from 3–6 mm plate — welded to the right-hand door leaf, with a matching staple plate on the left leaf that its slot drops over. The padlock hangs inside the box, reachable only through a hand-slot from below. The geometry is the security: bolt cutters cannot reach the shackle at a working angle, an angle grinder must cut the 3–6 mm shroud plate first (minutes of sparks and noise, versus seconds on an exposed shackle), and hammer attacks hit plate, not lock.

Numbers: $40–100 for the lockbox, $50–150 welded on, and many used containers already carry one — worth checking when buying. Bolt-on retrofit versions exist for owners without a welder; through-bolted with the nuts inside, they give up little. A lockbox is routinely an insurance requirement for jobsite containers, and it is the single highest-value security dollar on this page.

Selection logic: for a static storage box, lockbox + 60–70 mm hardened padlock (or a puck lock, which removes the shackle problem entirely) is the standard answer at under $200 total. A crossbar adds a second, different attack problem for high-risk sites. Chains are a stopgap. GPS smart locks earn their subscription on fleets and remote sites, where the alert matters more than the steel — pair one with container tracking practice, not instead of a mechanical lock. Shackle spec if buying a padlock: boron or hardened steel, ≥10 mm diameter, closed-shackle pattern.

A seal is not a lock — it is evidence. A bolt seal (a steel pin snapped into a one-way barrel through the door hasp, cut off with bolt cutters at destination) or a cable seal (a wire rope cinched through both lock rods) proves one thing: the doors have not been opened since sealing. Each carries a unique serial number recorded on the bill of lading; a broken or mismatched seal at destination triggers a cargo claim and an insurance trail.

ISO 17712 grades seals in three classes by tested strength: “I” (indicative) — plastic ties that only show tampering; “S” (security); and “H” (high security) — bolt and cable seals passing defined tensile, shear, bending and impact tests plus tamper-evidence audits. Ocean carriers and the US CTPAT program require class H seals on laden import containers; a compliant seal is stamped with the class letter, maker’s mark and serial. Cost is trivial against the cargo: $1–4 per H-class bolt seal in boxes of 100. Practice: photograph the applied seal with its number, verify the number (not just presence) at destination, and treat any discrepancy as a claim event.

In descending order of value per dollar: 1. Fit a lockbox — the shroud defeats the tool every casual thief carries. 2. Put a real lock in it — boron shackle 60–70 mm padlock or puck lock; the $8 padlock invalidates the $100 lockbox. 3. Doors toward light and sight — face a wall so doors cannot swing (dead storage), or face the house/camera/road (active use); thieves work unobserved ends of yards. 4. Defend the hinges — hinge pins are the forgotten flank; weld a tab over accessible pins or choose containers with interior-welded pins. 5. Light and camera — a $50 solar motion light on a container in view beats $300 of extra steel on one behind a hedge. 6. Photograph contents and the container number — recovery and insurance both start from the unit’s ISO number. For jobsites, add: empty the box of power tools before long weekends, which is when containers are opened.

Post-incident patterns repeat. The exposed shackle: any padlock hung bare on the handle hasps dies to 24-inch bolt cutters in seconds — without a lockbox, lock quality barely matters. The hasp, not the lock: factory handle hasps are riveted; thieves drill or shear the rivets and lift the whole assembly, lock intact — welded hasps or a lockbox close this. The hinges: grind two pins, and the door opens backwards on the locked side. The second door: the left leaf’s lock rods hold it shut; a crossbar or interior slide-bolt on the passive leaf stops pry attacks that peel it. The forgotten grinder: nothing on this page survives an unhurried battery grinder — 3–6 mm of lockbox plate buys minutes and noise, not immunity. Time, noise and visibility are the actual security products; every layer above buys more of all three.
