Container Foundation Options
Yuri Kan Updated
A shipping container carries its entire load through the four corner castings — that is how it stacks at sea — so a foundation only needs to support the corners: concrete piers (one under each casting, wider than the casting, dug below the frost line and sized to the soil) are the standard, with gravel pads plus sleepers and screw piles as alternatives and a full slab purely optional. The critical requirement is level: if one corner sits out of the plane of the other three, the frame twists and the doors bind — no standard publishes a siting tolerance, so check both ends and the diagonals before the box goes down.

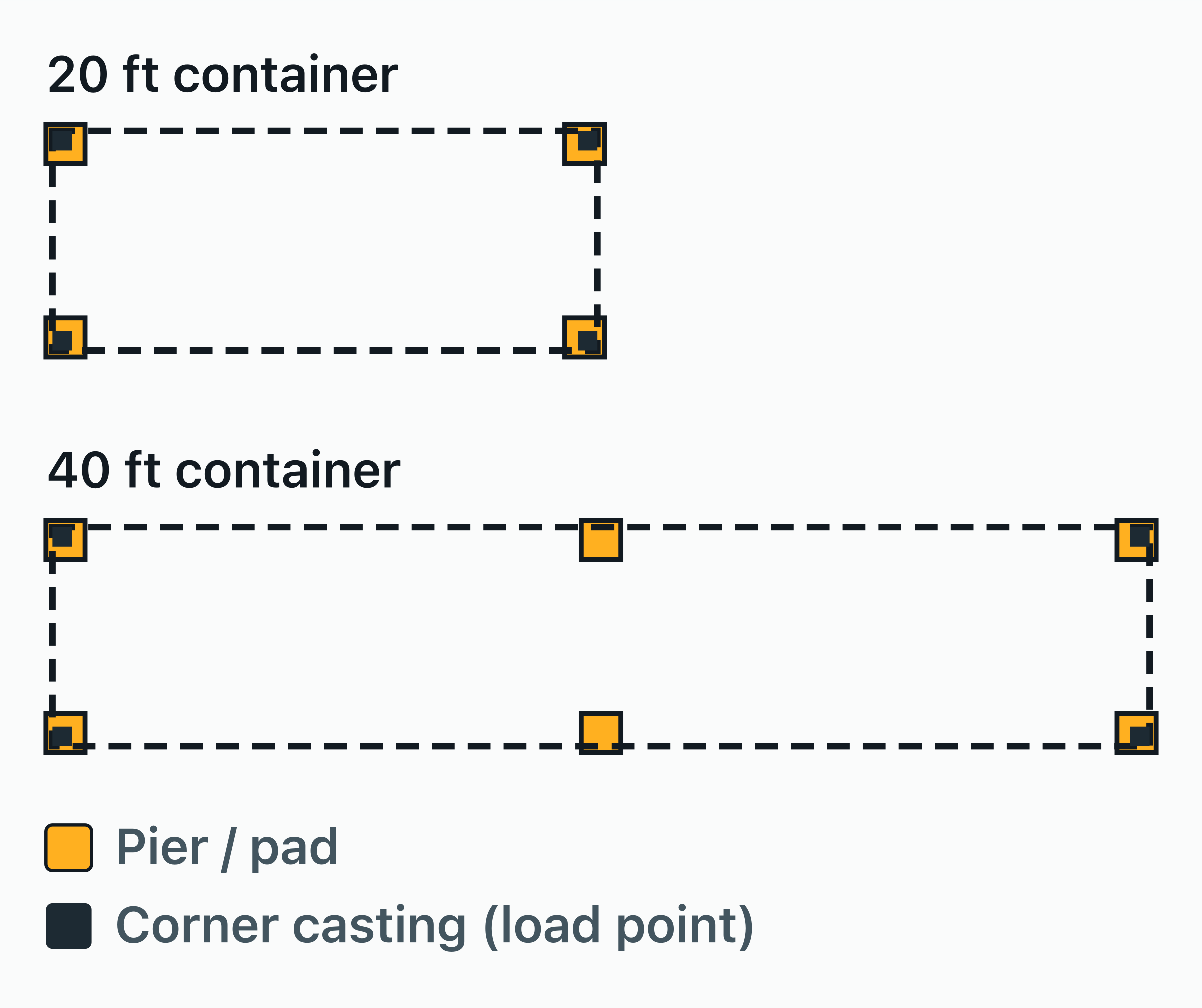

The figure above shows the whole story: a container is a bridge between its four corner castings. At sea, whole stacks of loaded containers press down through those same four points; nothing in the design expects support under the middle. Mid-span bearing does nothing structurally — a container resting on a perfectly flat slab still carries itself corner to corner.
That inverts the usual building instinct. You do not need a foundation under the container; you need four hard, level points under its corners — and getting those four points in one plane matters more than what they are made of.
The numbers in this chart
| Container | Pier / pad |
|---|---|
| 20 ft container | 4 |
| 40 ft container | 6 |
Four foundation options: piers, slab, gravel pad or screw piles
- Concrete piers are the most common: four piers, one under each casting. Each is wider than the casting it carries, sized to the soil and dug below the local frost line. They are cheap and permanent, and they lift the box off damp ground so air circulates beneath.
- A concrete slab is structurally optional. It is chosen for a clean working surface, vehicle access or because a slab already exists. The container still bears only at its corners.
- A gravel pad with sleepers is compacted gravel with railway sleepers or paving slabs under the corners. It is the temporary-siting standard: fully reversible and fine for storage.
- Screw piles are steel helical piles wound into the ground, with no excavation or curing. They are fast and precise to level, and the usual answer on sloping or poor-draining sites.
Level matters most: a twisted base jams the doors
The container tolerates a surprising amount of abuse but not twist. If one corner sits out of the plane of the other three, even by a margin the eye misses, the door frame racks and the doors bind or gape. No standard publishes a tolerance for siting; the doors are the test.
This is a common siting fault. A container whose doors closed perfectly at the depot and jam on site is sitting on a twisted base, not broken.
Check with a spirit level across both end frames. Shim under the low casting with steel plate; the doors free up as the frame squares.
Mid-span piers under a 40 ft: comfort, not strength
Structurally, a 40 ft needs no support in the middle: the underframe is designed to span the full 12.192 m (per ISO 668) corner to corner, loaded to 32,500 kg gross (per 12 of 15 sheets).
What mid-span piers buy on a 40 ft unit is comfort, not strength. Under foot traffic and workshop machines the long floor has perceptible bounce, and a pier under the cross-members stops it.
Fit them for a workshop conversion if the flex annoys you. Never let them replace properly supported corners. And never shim the middle higher than the corner plane — that twists the frame in the opposite direction.
Permits before piers: when fixing the box needs one
A container on temporary sleepers is one conversation with the local authority; a container on permanent foundations is usually another. In many jurisdictions, fixing the box to piers or a slab is precisely what reclassifies it from temporary placement to a permanent structure requiring a permit. If the container will be occupied, the full planning picture is covered in container home dimensions.
Frequently asked questions
Does a shipping container need a foundation?
It needs four firm, level bearing points under its corner castings — not necessarily a foundation in the conventional sense. Compacted gravel with sleepers suffices for temporary storage; concrete piers below the frost line are the permanent standard. A full slab is optional.
How many piers does a 40 ft container need?
Four — one under each corner casting — carry the full structural load. Add mid-span piers under the cross-members only to damp floor bounce in workshop or living use; they are comfort, not structure.
Can you put a shipping container on gravel?
Yes — a compacted gravel pad with sleepers or slabs under the corner castings is the standard temporary siting. It drains well and keeps the underframe off wet ground; just get the four bearing points level with one another, checked across both ends and the diagonals.
Why do container doors jam after siting?
Twist: one corner sitting out of the plane of the other three racks the door frame. It is a base problem, not a door problem — shim under the low corner casting with steel plate until all four are level, and the doors close again.
Can a shipping container withstand a tornado or hurricane?
The box itself survives extreme wind, but an empty 20 ft weighs only about 2.2 t, so the risk is sliding or overturning. The box is a welded Corten-steel structure built for stacking on a ship’s deck. Anchored to piers or ground anchors (or simply loaded), containers routinely ride out hurricane-force winds.
