Container Ventilation & Condensation
Yuri Kan Updated
Container rain happens when warm, humid air inside meets the cold steel roof at night: the steel drops below the dew point and moisture condenses, then drips onto the cargo. The fix, in escalating order: passive vents fitted high and low at opposite corners for cross-flow, a turbine vent for conversions, desiccants dosed by the length of the voyage (the World Food Programme puts 9 kg of calcium chloride in a 20 ft for 15–59 days) — and insulation as the permanent cure.
A sealed steel box is a condensation machine. The air inside always carries some moisture — from cargo, packaging, timber floors or simply the day it was closed — and steel walls track the outside temperature almost instantly. Cool the steel below the air’s dew point and water appears on the ceiling as reliably as on a cold beer glass.
The escalation path runs from free (vent placement) through cheap (desiccants) to permanent (insulation). Most storage problems are solved at the first two steps.
Why do containers rain inside?
Air at 25 °C and 70% relative humidity holds about 16 g of water per cubic metre and has a dew point near 19 °C (the Magnus formula). A clear night drops the roof steel well below that. Every cubic metre of interior air then surrenders its excess water onto the coldest surface — the underside of the roof.
Cool all the air in a 33.2 m³ 20 ft box to 10 °C and that one fill of air gives up about 220 ml of water. Damp cargo, packaging and timber then add their own, which is why cargo arrives water-marked from a box that never leaked.
The trigger is the day–night temperature swing, not rainfall: the worst container rain happens in dry climates with cold nights and in humid coastal ones alike.
How many vents does a container need?
Four vents (two low, two high, diagonally opposed) is the standard retrofit for a 20 ft storage unit; all should be baffled or hooded against driven rain. Standard dry containers ship with a few small pressure vents — enough to equalise air pressure, nowhere near enough for moisture.

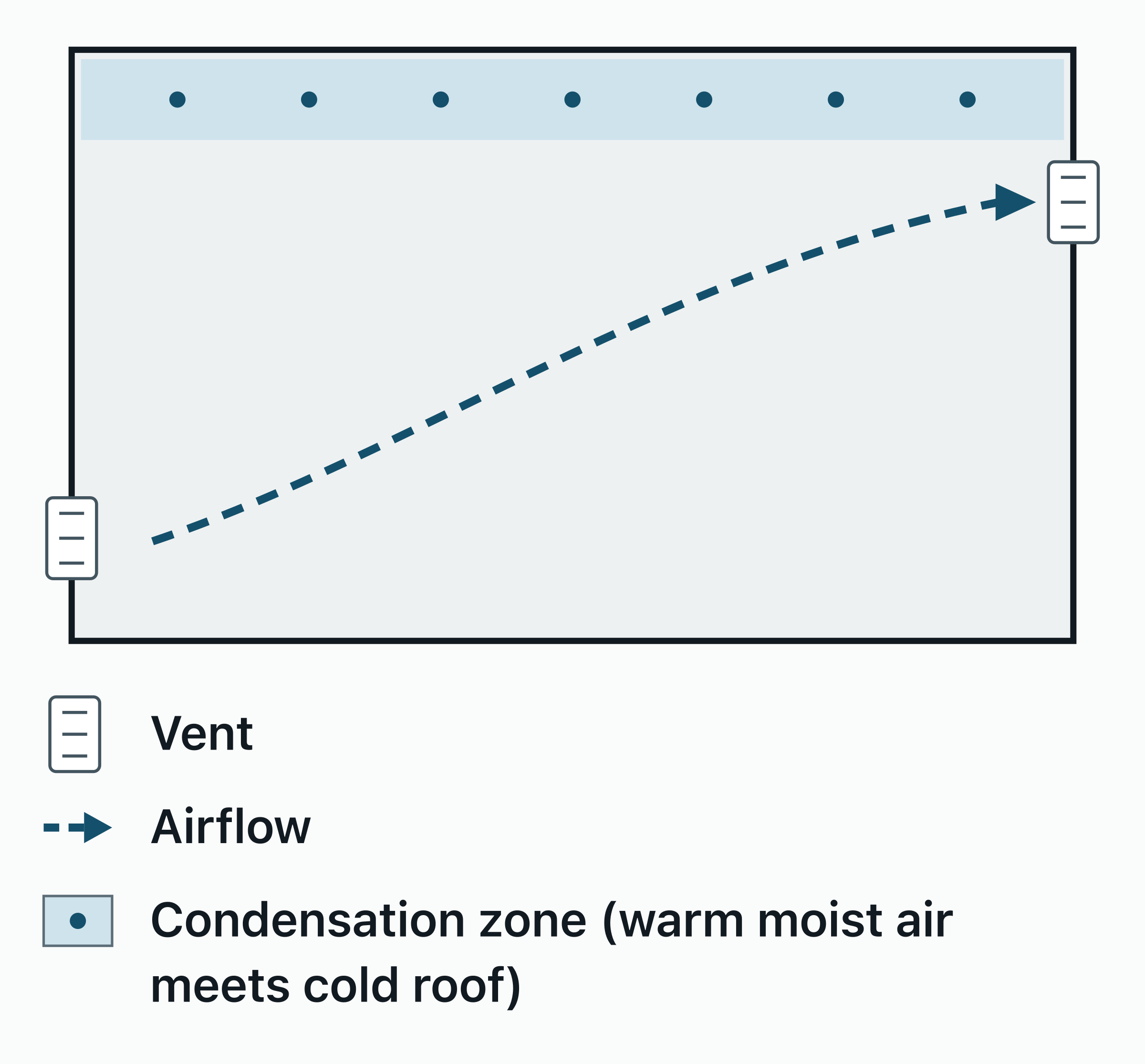

Effective passive ventilation needs a flow path: fit louvred vents low on one end wall and high on the opposite corner. Warm moist air then exits at the top while cooler air enters at the bottom and sweeps the length of the box. Two vents on the same wall, or both at the same height, move almost no air.
Turbine vents and powered fans for occupied conversions
For conversions — workshops, offices, anything humans occupy — passive cross-flow is not enough. A whirlybird (turbine vent) on the roof extracts air continuously with no power, driven by wind and thermal lift; paired with low intake vents it changes the air many times per hour.
Solar-powered extractor fans do the same with more authority and work on still days. Cut-ins through the roof must be flashed and sealed properly — a leaking vent causes exactly the problem it was meant to solve.
Desiccants: dosing that actually works
Desiccants absorb moisture rather than remove its source, which makes them the right tool for a closed box in transit or short-term storage. One published dose is the World Food Programme’s container-loading procedure for bagged food: calcium-chloride desiccant in 125 g packs, dosed by the length of the voyage:
- desiccant packs in a 20 ft: 72 packs (9 kg) for 15–59 days, 90 (11.25 kg) for 60–89 days and 108 (13.5 kg) for 90–120 days;
- desiccant packs in a 40 ft: 140, 180 and 200 packs for the same three voyages.
Keep the vents closed or taped while the desiccant works. That dose is many times the single small pouch commonly thrown in.
Calcium-chloride pole-mounted absorbers outperform silica gel per kilogram and show their work as collected brine. Replace them on schedule; a saturated desiccant is dead weight.
Ventilated containers, and insulation as the permanent fix
Cargo that breathes — coffee, cocoa, grain — ships in purpose-built ventilated containers with full-length vent galleries, one of the special types covered in types of shipping containers.
For everything else, the permanent cure is stopping warm air from reaching cold steel at all: insulation with a vapour barrier, which turns the problem off at the source. Methods, R-values and costs are in the container insulation guide.
Frequently asked questions
Why does my shipping container sweat inside?
Warm, humid interior air meets steel cooled below the dew point — typically the roof on a clear night — and moisture condenses, dripping onto whatever is below. It is driven by day–night temperature swings, not leaks: a perfectly watertight container still rains inside.
How many vents does a shipping container need?
For storage, four retrofit louvred vents on a 20 ft: two low on one end, two high on the diagonally opposite corner, creating cross-flow along the box. The factory pressure vents alone are not ventilation. Occupied conversions need a turbine vent or powered extraction on top.
Do desiccants stop container condensation?
Yes, if dosed for the voyage: the World Food Programme’s loading procedure puts 72 packs of 125 g — 9 kg of calcium chloride — in a 20 ft for 15–59 days in transit, and 13.5 kg for 90–120 days, not one small pouch. Calcium-chloride absorbers work best and must be replaced once saturated. For long-term storage, vents or insulation are cheaper per year.
What is container rain?
The shipping term for condensation dripping from a container ceiling onto cargo. Moist air loaded at a warm port condenses when the steel cools at sea or overnight; one fill of air in a 20 ft box, cooled from 25 °C at 70% humidity to 10 °C, gives up about 220 ml, water-marking cargo in a container that never leaked.
Will insulation stop condensation in a container?
Yes — it is the permanent fix. Insulation with a vapour barrier keeps interior air away from cold steel, so the dew point is never reached at the surface. Closed-cell spray foam does both jobs in one layer; vents and desiccants then become optional rather than essential.
